MY7180

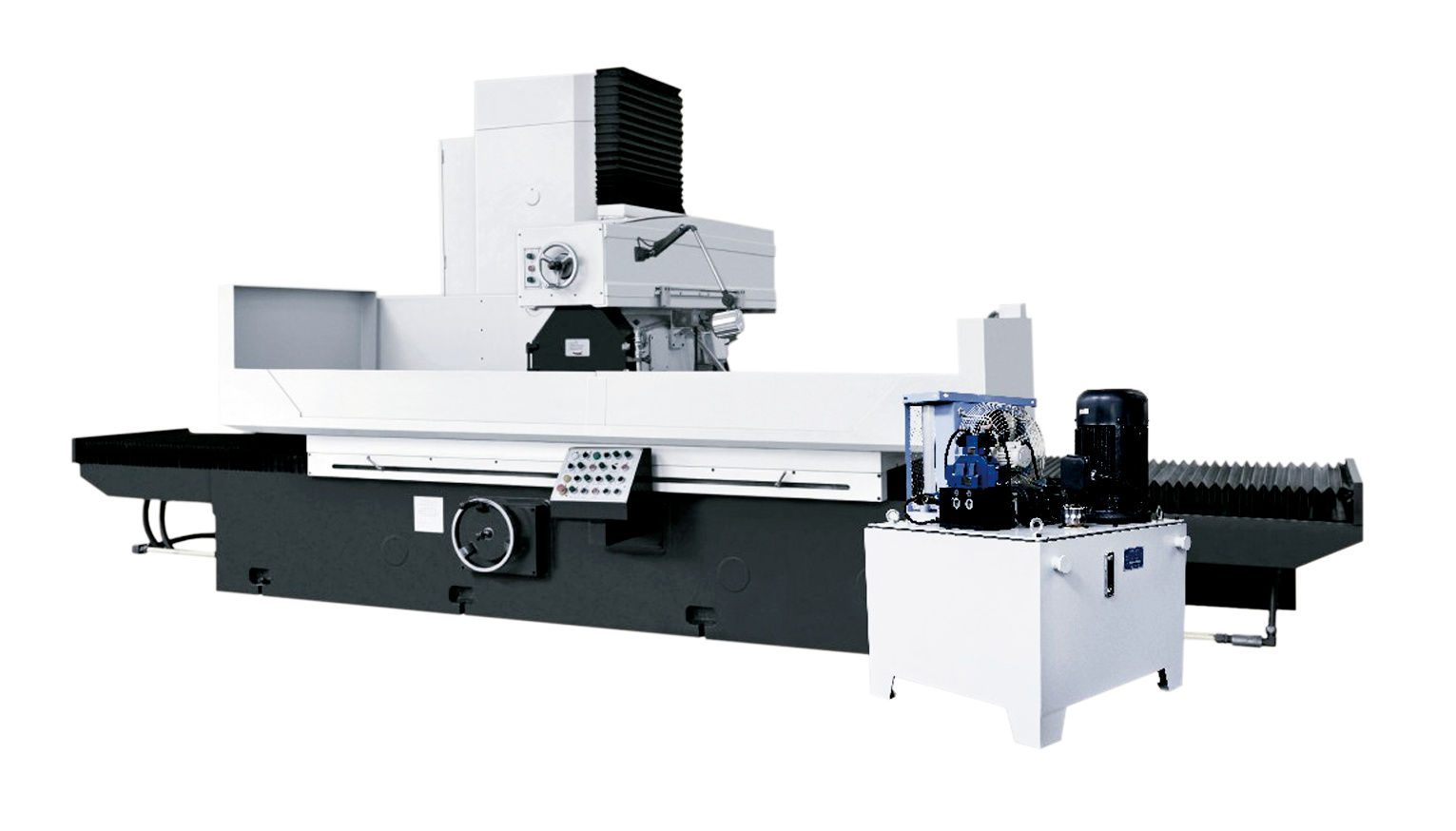

This machine adopts the periphery surface of the grinding wheel to grind surface of work piece. Vertical plane of work piece can be ground by the end face of the wheel. When ground, work piece is fixed on the electrical magnetic chuck or the table directly according to different ones.

The table moves longitudinally by hydraulic drive. The wheel head turns around transversely on the carriage either by hydraulic or by hand, and the device of automatic interlock is mounted. The carriage (together with the wheel head) moves vertically on the column either by hand or by mechanical operating, and an interlock device is mounted. The vertical ball screw, operated lightly and flexibly.

Model	MY7180x30
Size ( L x W )   mm	800x3000
Max. longitudinal travel   mm	3100
Max. cross travel    mm	880
Max. distance from spindle axis to table surface  mm	945
Max. wheelhead vertical travel   mm	720
Vertical feed: per graduation   mm	0.005
Vertical feed: per rev.   mm	0.5
Size   mm	450x203x75
Rotating speed   rpm	1500
Wheel spindle motor   kw	15
Oil pump   kw	11
Parallelism of machined surface to reference surface	0.005/300mm
Surface roughness	Ra:0.63 μm
Net weight / Gross Weight  tons	15.5 / 16.7
Packing size  m	8.3x2.29x3.1

• Grinding wheel
• Wheel flange
• Wheel balance shaft
• Pad iron
• A complete of usable tools
• Cooling device
• Wheel dresser
