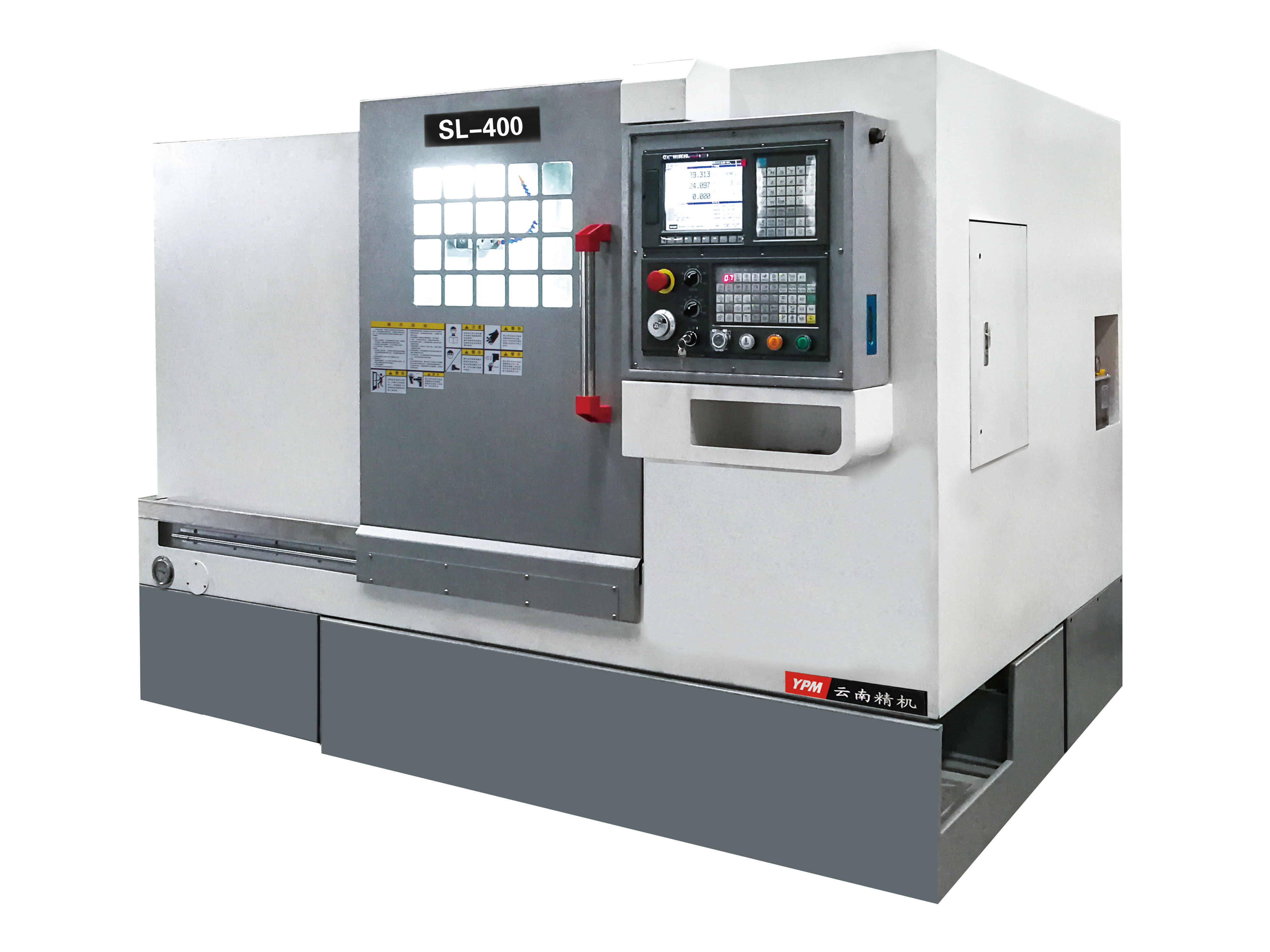

SL400
Modle: SL400
Brand: YPM
Feature of the machine:
- This machine has a special and beautiful modeling. It can make high speed, precision and high
Efficiency, cutting for complexly shaped parts. It is suitable for auto parts, valves, and other similar parts.
- Whole leg.
- Sleeve spindle unit with Germen KLUBER grease.
Main Technical Specifications
Model
SL400
Max. swing over bed
Φ420 mm
Max. swing over slide
Φ220 mm
Recommended turning dia.
Φ210 mm
Max. turning dia.
Φ320 mm
Max. cutting length
350 mm
Max. X axis travel
210 mm
Max. Z axis travel
450 mm
X and Z axes rapid travel speed
20 m/min
Spindle thru-hole
Φ56 mm
Chuck dia
Φ160 mm (6”)
Speed of spindle
3500 r.p.m.
Spindle motor power
7.5 kW servo motor
Spindle nose
A2-5
Bed structure
45°
Hydraulic Turrent
80-8T
Tool size(turning/boring)
25x25 mm/Φ32 mm
Dia. of tailstock quill
Φ52 mm
Max. travel of tailstock quill
60 mm
Taper hole of tailstock quill
M.T. 4
MachineDimensions (LxWxH)
2600x1800x.1600 m
Power supply
30 kVA
Total weight
2700 kg
Standard accessories
- Taiwan’s 8” hydraulic chuck.
- Taiwans’s ball leadscrew.
- Taiwan’s liner guideway.
- NSK bearings of ball leadscrew.
- Taiwan’s PHLE oil sealings.
- Italian V-belts
- Hydraulic tailstock.
- Coolant system.
- Controller Chinese GSK980TDC.
