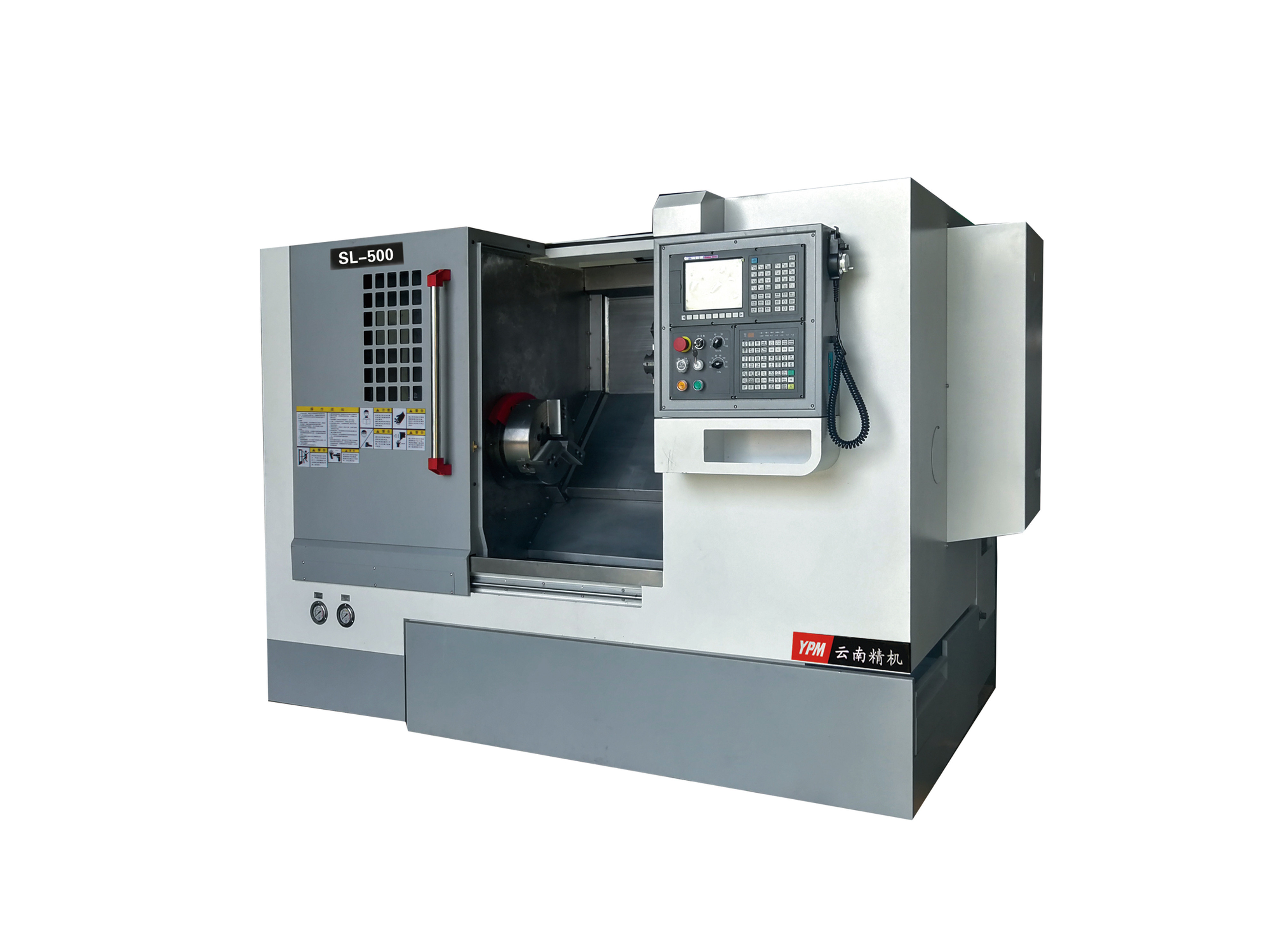

SL500
Modle: SL500
Brand: YPM
Feature of the machine:
- This machine has a special and beautiful modeling. It can make high speed, precision and high
Efficiency, cutting for complexly shaped parts. It is suitable for auto parts, valves, and other similar parts.
- Sleeve spindle unit with Germen KLUBER grease.
Main Technical Specifications
Model
SL500/600
SL500/1000
Max. swing over bed
Φ570 mm
Φ570 mm
Max. swing over slide
Φ320 mm
Φ320 mm
Recommended turning dia.
Φ250 mm
Φ250 mm
Max. turning dia.
Φ360 mm
Φ360 mm
Max. cutting length
450 mm
750 mm
Max. X axis travel
250 mm
250 mm
Max. Z axis travel
600 mm
1000 mm
X and Z axes rapid travel speed
20/16 m/min
20/16 m/min
Spindle thru-hole
Φ86 mm
Φ86 mm
Chuck dia
Φ250 mm (10”)
Φ250 mm (10”)
Speed of spindle
2000 r.p.m.
2000 r.p.m.
Spindle motor power
11 kW servo motor
11 kW servo motor
Spindle nose
A2-8
A2-8
Bed structure
45°
45°
Hydraulic Turrent
100-8T
100-8T
Tool size(turning/boring)
25x25 mm/Φ40 mm
25x25 mm/Φ40 mm
Dia. of tailstock quill
Φ75 mm
Φ110 mm
Max. travel of tailstock quill
100 mm
100 mm
Taper hole of tailstock quill
M.T. 5
M.T. 4
MachineDimensions (LxWxH)
2900x1800x.1800 m
3100x1800x.1800 m
Power supply
35 kVA
35 kVA
Total weight
3100 kg
3600 kg
Standard accessories
- Taiwan’s 8” hydraulic chuck.
- Taiwans’s ball leadscrew.
- Taiwan’s liner guideway.
- Taiwan’s liner guideway.
- NSK bearings of ball leadscrew.
- Taiwan’s PHLE oil sealings.
- Italian V-belts
- Hydraulic tailstock.
- Coolant system.
- Controller Chinese GSK980TDC.
